GIGS TRUCK GATE

Extra-Wide Gate for Heavy Goods Vehicles or Emergency Service Vehicles

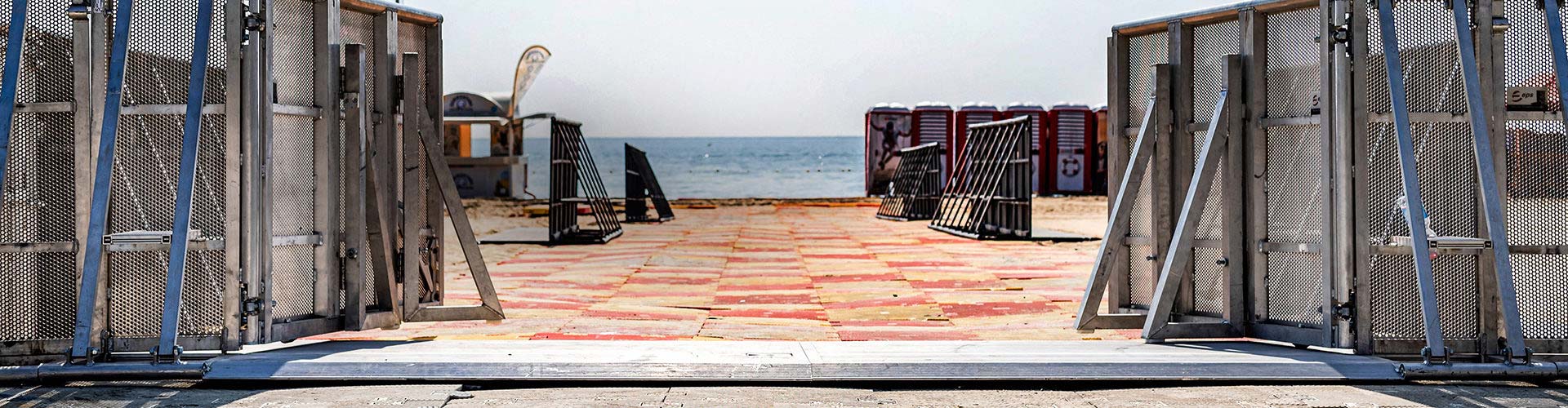

The GIGS Truck Gate is the widest component of the GIGS range. It is suitable as an access gate for large vehicles. Moreover, it works well with trucks, cars, ambulances, or construction machines, such as forklifts. Similarly, these vehicles can drive through the barricade line without any problems. We recommend using our gate to exit event guests, especially at events with a high number of visitors.

HIGHLIGHTS

  • Gate opening of 3.24 m (127 in), the largest door in the GIGS range, for emergency evacuation planning
  • The GIGS Truck Gate’s two-way opening design allows you to install two gates in alignment across parallel barrier lines
  • 100 % recyclable materials
North & South America
Australia
Europe
The Product you are looking for is not available? Don't worry, check all eps products worldwide and get in touch. Let us find the perfect alternative for you.
Stadium and Arena Shows Stadium and Arena Shows
Festivals Festivals
Sporting Events Sporting Events
High Attendance Events High Attendance Events
Vehicle Access Control Vehicle Access Control
Optimal on Flat, Stable Ground Optimal on Flat, Stable Ground
CURIOUS?

Special stage barricade issues? No problem. Our team has got the right solution for all your needs.

PRODUCT FEATURES FOR THE GIGS TRUCK GATE

Our weather- and fireproof GIGS Truck Gate stands out with its highly robust construction. Moreover, it’s constructed per CE Standard. Similarly, a static expert opinion proves the high-pressure stability of the gate. We designed and built this system at eps’ Italian manufacturing division.

Product Description arrow down

It is available in an aluminum version or a galvanized steel version. The silver-colored gates have a passage width of 3.24 meters (127 inches) and an overall width of 4.25 meters (168 inches). The steel gate weighs 586 kilograms (1,292 pounds). Moreover, the lighter aluminum variant weighs 219 kilograms (483 pounds). In both versions, the depth is 1.25 meters (49 inches), and the height is around 1.18 meters (46 inches).

Extra: Transparent GIGS High Fence Barricade Attachment

Moreover, you can attach our transparent GIGS High Fence elements to the transit gates. Therefore, this combination allows the security guards behind the barricade to keep an eye on what is happening on the other side. Similarly, it offers ultimate protection. You can also combine the GIGS Truck Gate with other GIGS components.

Technical Data arrow down
Technical Data
Material
Aluminum
Dimensions (l x w x h)
4.25 × 1.25 × 1.18 m (166 × 49 × 46 in)
Width passage: 3.24 m (127 in)
Weight
Approx. 219 kg (483 lbs)
Color
Silver or black
Additional Information
These wide gateways have the largest doors within the GIGS product range and enables trucks and emergency vehicles to pass through a line of barricade. Doors open both directions.
Transport
2 per dolly
Optional Extras arrow down

BEST PRACTICE

The GIGS Truck Gate is suitable as an access gate for large vehicles as well as a visitor exit for concerts and sporting events such as the DFB Cup Final at the Olympiastadion Berlin

GIGS TRUCK GATE: DID YOU KNOW?

Even with solid counter-pressure, you can open the wings of the GIGS Truck Gate in both directions. Therefore, this is a great advantage for use at various major events. There are two stair treads on the back. These treads make it easier for security guards to see and reach the public.

Advantages and Benefits arrow down
  • Gate opening of 3.24 m (127 in), the largest door in the GIGS range, offers emergency evacuation planning
  • The GIGS Truck Gate’s two-way opening design allows you to install two gates in alignment across parallel barrier lines
  • 100 % recyclable materials
Application Details arrow down

The GIGS Truck Gate can easily work with the GIGS barrier system. Thanks to the wide aperture, emergency vehicles, construction site vehicles, and heavy goods, transporters egress to event spaces without any problems. Moreover, the gate also facilitates pedestrian flow for large egress areas.

Certified Pressure Stability and Ideal Access for Ambulances

Openings in both directions, certified pressure stability, and an ideal passage option for ambulances are essential safety precautions of the GIGS Truck Gate. Therefore, this element is necessary for barricade lines that significantly increase safety at large events.
