OMNIDECK PANELS

Heavy-duty, pedestrian-friendly cover system for sensitive surfaces

The OmniDeck panels are a versatile ground protection system that can meet various needs. Made of durable plastic, they provide optimal protection for sensitive, level green areas. They are particularly suitable for stadiums, such as stage and spectator areas. The panels can also create heavy-duty foundations, access roads, and pedestrian-friendly surfaces.

HIGHLIGHTS

  • Load-bearing and pedestrian-friendly at the same time
  • Fast, manual installation thanks to low weight and integrated, self-explanatory locking system
  • Gentle on the lawn: material allows light to penetrate the covered substrate
North & South America
Australia
Europe
Ausgewählte Filter:
You haven't found a match? Don't worry. Get in touch, and let us find the perfect alternative for you.
Protection of Sensitive Soils
Stadium Turf
Greenfield Sites
Temporary Event Spaces
Temporary Access Roads
Storage Areas
Foundations for Stages and Grandstands
Temporary Tent Floors
CURIOUS?

Special ground issues, difficult terrain? No problem. Our team has got the right solution for all your needs.

PRODUCT FEATURES FOR OMNIDECK PANELS

OmniDeck panels are quick and easy to assemble and disassemble, making them ready for use in no time. Their low weight and easy-to-understand, integrated locking system allow for fast, manual installation. Additionally, the two grab handles make installation even easier. With the ability to lay in all directions, OmniDeck panels provide versatile turf protection for any event.

Product Description

The translucent OmniDeck panels are highly durable and flame-retardant, making them a reliable choice for any event. The high-density polyethylene material is UV-resistant, and the swivel locks of the panels are made of polycarbonate. Available in translucent white and anthracite gray, the 3.80-centimeter-high (13.77 inches-high) panels provide floor protection covering 1.67 square meters (17.97 square feet) and weighing 24.90 kilograms (54.89 pounds).

Interlocking, Solid, and Seamless on All Sides

The panels feature an inner honeycomb structure that enhances their stability and allows for interlocking and connecting without issues. The lightweight and versatile event floor has a profiled, non-slip top surface, providing a secure footing for pedestrians. The underside of the panels is studded, further adding to their stability.

Transport And Storage Efficient

The OmniDeck system is efficient for transporting and storing, with up to 810 panels transportable on a single trailer, depending on the trailer version. They can also be transported by sea container. We can take care of transport, assembly and disassembly, and final cleaning if needed.

Technical Data
Material
High-density polyethylene (HDPE) with UV resistance properties and polycarbonate cam locks
Dimensions (l x w x h)
1.83 m x 0.91 m x 0.038 m
(6 ft x 3 ft x 1.5 in)
Weight
Approx. 24.90 kg (55 lbs) per panel
Color
Translucent, Anthracite Grey
Accessories
Ramps (200 psi, depending on subsurface conditions)
600 psi, depending on subsurface conditions
Additional Information
750 panels per U.S. standard 48 ft flatbed truck
806 panels per U.K. lorry/EU truck
Optional Extras

We offer the necessary tools to lock and unlock the panels, along with flat ADA ramps that can be attached to all sides of the panels to provide wheelchair-friendly access. Additionally, the ramps allow for smooth ascents and descents for forklifts and other similar equipment.

Additional Protective Underlays

We also provide various protective underlays such as geotextile, PE film, or EnkaMat, which are ideal for different types of ground conditions. A combination of different turf protection systems is also possible.

EXTENSIONS AT A GLANCE

  • Flat ADA ramps for wheelchair access and gentle ascents and descents, mountable on each side
  • Optional underlays for additional protection of the subsoil and better adaptation to the soil conditions
  • Compatible with various turf protection systems
  • CAD drawings provided by eps to optimize the planning process

BEST PRACTICE

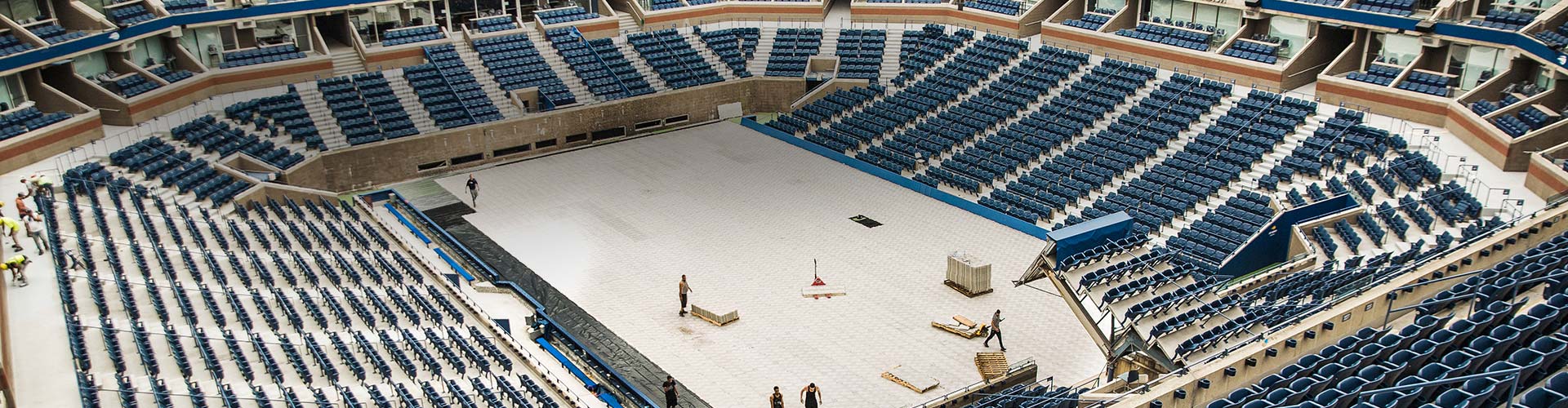

OmniDeck Panels offer special protection to grass surfaces in stadiums

OMNIDECK PANELS: DID YOU KNOW?

Choosing OmniDeck panels can lead to significant cost savings. The intuitive system makes assembly and disassembly quick and easy, saving time and money. Two people can effortlessly lift and position a floor panel, while a forklift or pallet truck can be used to speed up the installation process. However, the set-up and dismantling can be done without any additional aid. Fixed elements on the event site can be easily converted using floor protection plates.

Translucent Texture

To ensure optimal protection for the turf, we recommend cutting natural grass shortly before laying and allowing watered turf to dry beforehand. Thanks to the translucent material, the OmniDeck system can cover the ground, allowing light to penetrate and minimizing damage. Furthermore, the visually appealing design adds a professional touch to your event’s flooring solution.

Advantages and Benefits arrow down
  • Load-bearing and pedestrian-friendly at the same time
  • Fast, manual installation thanks to low weight and integrated, self-explanatory locking system
  • Laying possible in all directions
  • Transport and cost-efficient
  • Gentle on the lawn: material allows light to penetrate the covered substrate
  • Visually appealing design
Application Details arrow down

The OmniDeck system has many applications and can be a stable substructure for large stages, grandstands, temporary tent floors, or load-bearing storage areas. It is particularly ideal for events in stadiums or similar locations on level surfaces, providing the necessary protection for natural, artificial, or hybrid turf.

Ideal for Outdoor Events

The floor protection solution distributes weight effectively and can support forklift trucks and other heavy vehicles. It also provides safe access routes and pedestrian-friendly surfaces for public areas. In short, the OmniDeck drivable event flooring is an attractive option for various outdoor events, with many properties and uses that make it highly versatile.
