    TERRAFLOR

    Professional Turf Protection System for Medium Loads

    Terraflor is ideal for natural and artificial turf, such as football fields, golf courses, and other outdoor fields. Moreover, it is also a suitable solution for uneven or sensitive surfaces. The turf cover adapts perfectly to uneven grounds due to the flexible panel connections.

    HIGHLIGHTS

    • Engineered to support medium loads
    • Liquid spill protection
    • Adaptive to undulating ground conditions
    North & South America
    Australia
    Europe
    Ausgewählte Filter:
    You haven't found a match? Don't worry. Get in touch, and let us find the perfect alternative for you.
    Sensitive Ground Protection
    Stadium Turf and Running Tracks
    Greenfield Sites
    Golf Courses
    Undulating Ground
    Temporary Event Spaces
    CURIOUS?

    Special ground issues, difficult terrain? No problem. Our team has got the right solution for all your needs.

    GET IN TOUCH

    PRODUCT FEATURES FOR TERRAFLOR

    Terraflor’s integral non-slip surface has anti-spill features to stop fluids and dirt from passing into the field. Raised air holes prevent spillages from reaching the subsurface. These holes allow air to permeate through the system to the grass below. Multi-directional locking mechanisms ensure a stable, gap-free event surface while providing effective load distribution.

    Product Description

    Like other systems, we supply the translucent white turf protection system in a prefabricated unit consisting of several panels. The resulting elements come with 6 panels, 1.50 meters (58 inches) long and 2.25 meters (88 inches) wide. Each piece weighs about 30 kilograms (67 pounds). In addition, the panels, made of hardened and UV-stabilized polyethylene, are light- and air-permeable. This allows the lawn to breathe further and retain its healthy green color.

    Secure Hold, Non-Slip Surface

    Thanks to its non-slip surface structure, the turf protection system offers visitors a secure hold. Special openings in the panels protect against dirt and liquids, such as precipitations and spilled drinks. We can take care of transport, construction, breakdown, and final cleaning on request. It is also possible to cut the panels to the exact size for an additional charge.

    Technical Data
    Material
    Hardened polythene with UV stabilizer
    Dimensions (l x w x h)
    1.48 × 2.23 × 0.0381 m (58 × 88 × 1.5 in)
    Weight
    Approx. 30.4 kg (67 lbs) per panel
    Surface
    Integral non-slip surface
    Color
    Translucent natural material, which allows passage of light, ensuring grass health
    Accessories
    Terraflor keys, edge ramps
    Transport
    16 pallets à 25 panels per standard trailer
    Approx. 1,296 m² (13,950 ft²)
    Optional Extras

    In addition to the keys designed for the construction and the breakdown, special edge ramps in safety colors are also part of the system accessories. The ramps can be easily attached to the edges of the panels to provide barrier-free access in no time at all.

    Additional Protection

    For the additional protection of artificial turf, we offer underlays made of PE foil or geotextile. While the turf protection panels are designed mainly for the spectator area, we recommend heavy-duty floor protection panels such as the Arena Panels for the stage area. You can easily combine Terraflor with all ground protection systems for heavy equipment.

    EXTENSIONS AT A GLANCE

    • Ramp accessories to ensure smooth transitions to sub-surface
    • Optional range of underlays to protect the sub-surface and adapt to ground conditions
    • Transition products to seamlessly connect Terraflor with other ground and turf protection systems
    • CAD design to help optimize the planning process

    BEST PRACTICE

    Terraflor is designed for use on both natural and artificial turf and is ideal for uneven or sensitive surfaces

    TERRAFLOR: DID YOU KNOW?

    By creating stable, trip hazard-free pedestrian event floorings with non-slip surfaces and specially designed openings, Terraflor combines high public comfort with the best turf protection properties. In addition, the system is highly flexible and ideal for both natural and artificial grass and on both even and uneven surfaces.

    Quick and Easy Assembly

    This also eliminates purchasing a new turf protection system when changing natural and artificial lawns. Further advantages of the system: Due to their low weight, you can quickly assemble the slabs, and if desired, they can be cut to size.

    Advantages and Benefits arrow down
    • Pedestrian-friendly
    • Engineered to support medium loads
    • Liquid spill protection
    • Light permeable, translucent natural material enables continual grass growth
    • The weight distribution of load protects the sub-surface and reduces compression
    • Suitable for indoor and outdoor use
    • Adaptive to undulating ground conditions
    Application Details arrow down

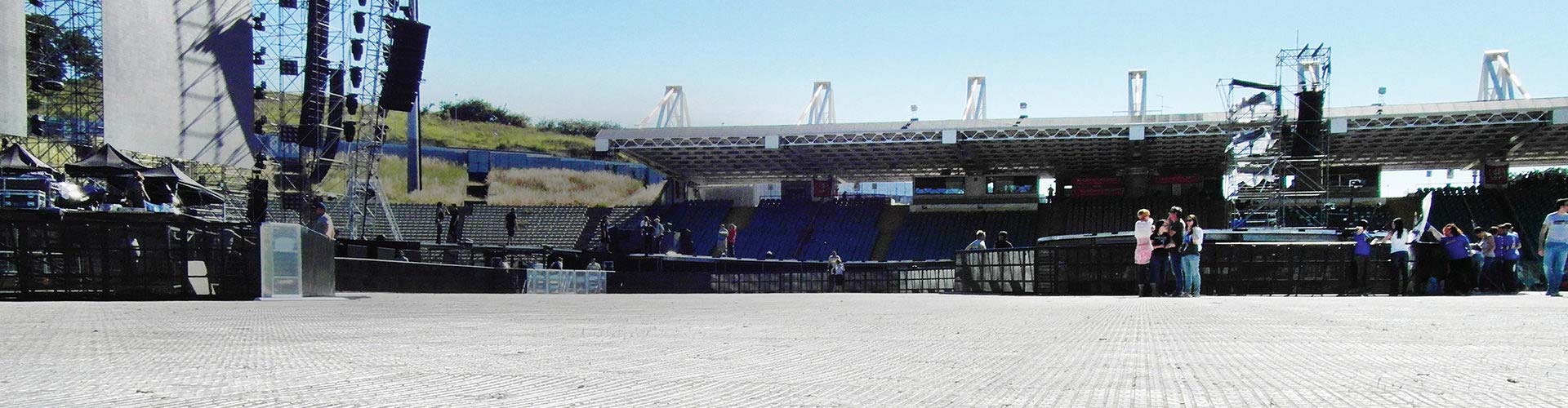

    With Terraflor, you can cover bumpy lawns safely. It works for sensitive natural or artificial turf. The temporary grass protection optimally protects both substrates. Also, Terraflor is ideal for festivals, concerts, or other major events on football pitches, stadiums, or similar venues. The turf protection mats can easily withstand large crowds.

    For a Solid and Load-Bearing Surface

    They provide the audience with a stable, load-bearing surface. If required, the panels can also level the surface for seating. The flexible turf protection system can also adapt to hilly golf courses or similar areas. Terraflor offers green spaces maximum protection for up to one week, depending on the weather conditions and the lawn characteristics.

    DOWNLOAD FACTSHEET
