    HD PANELS

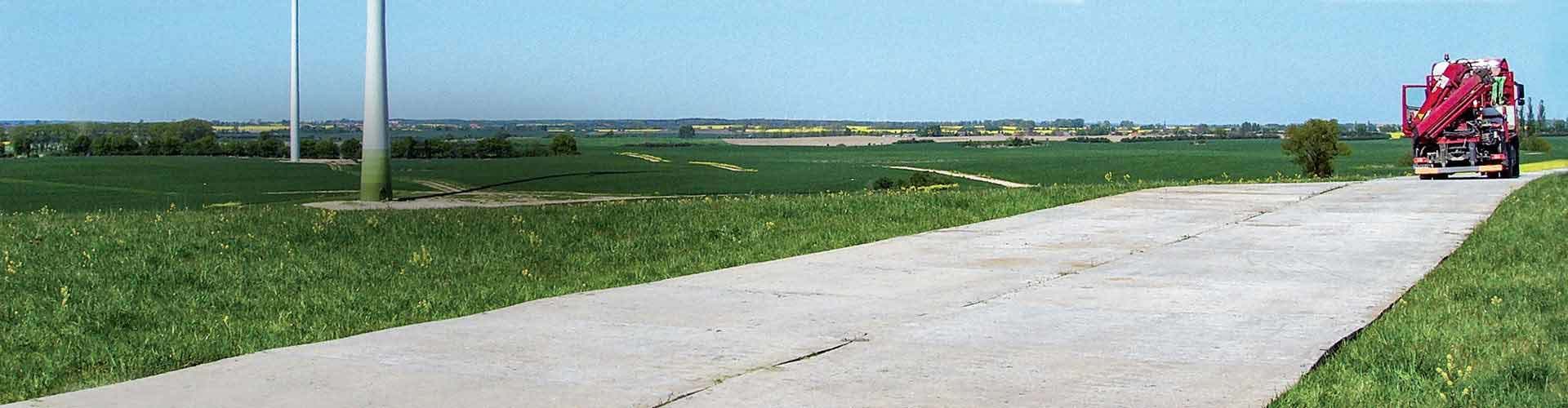

    High Load Capacity: HD Panels for Site Road Systems and Construction Platforms

    HD Panels are made for the extreme. These are ideal for grounds difficult to drive on. Moreover, the robust ground protection mats smooth the way. Similarly, these can withstand the highest loads, such as heavy-duty transports. This makes this ground protection system attractive for the construction industry.

    HIGHLIGHTS

    • HD Panels present the heaviest duty of all aluminum roadways. Moreover, these offer reliable access for construction vehicles in adverse conditions
    • Cross-bonded for added traction
    • A rear-mounted crane installs the panels. Moreover, this guarantees safe access from the outset of installation
    North & South America
    Australia
    Europe
    Ausgewählte Filter:
    You haven't found a match? Don't worry. Get in touch, and let us find the perfect alternative for you.
    Construction Sites
    Temporary Access Roads
    Production Routes
    Film Locations
    Sites with Poor Subsurface
    Adverse Cambers
    CURIOUS?

    Special ground issues, difficult terrain? No problem. Our team has got the right solution for all your needs.

    GET IN TOUCH

    PRODUCT FEATURES FOR HD PANELS

    An HD panel is about 2.5 meters (8 feet 2 inches) long, 3 meters (10 feet) wide, and 4.3 centimeters (2 inches) high. The weight is about 396 kilograms (873 pounds). The silver-colored ground protection mats are made from extruded aluminum, and these consist of several layers.

    Product Description

    In addition to the material, the multi-layer structure also offers stable texture. Moreover, our drivable event flooring provides a highly profiled surface. Deep corrugation, cross-banded at the top and underside of the HD Panels, offers high levels of traction. These are suitable for sites with poor ground conditions, such as damp soils or significant topological gradients.

    Transport, Construction, and Breakdown

    We can transport the heavy panels with open trailers. Similarly, we also offer these for long-term rental. We can take care of the transport, construction, and breakdown. Moreover, one of our experienced supervisors can provide on-site support.

    Technical Data
    Material
    Strand-cast aluminum
    Dimensions (l x w x h)
    2.50 × 3.05 × 0.043 m (8 ft 2 in × 10 ft × 2 in)
    Weight
    Approx. 396 kg (873 lbs) per panel
    Surface
    Textured for optimum traction
    Color
    Silver
    Accessories
    Geotextile
    Additional Information
    Load bearing capacity:
    139 t per m² (28,400 lbs per ft²)
    (depending on underground)
    Transport
    55 Panels per standard trailer
    Approx. 138 m / 420 m² (453 ft / 4,521 ft²)
    Optional Extras

    To protect the upper layer of the ground, we recommend an additional geotextile of nonwoven fabric. You can lay this under the heavy-duty sheets. This means that the panels can also be used on sensitive natural surfaces.

    Additional Accessories

    We offer other accessories necessary for installing the ground protection system, such as suitable screws. Moreover, you can combine the ground protection for heavy equipment mats with a wide variety of turf protection systems. Similarly, our HD Panels are ideal for safe transport routes and platforms.

    EXTENSIONS AT A GLANCE

    • For sites with multiple access requirements, you can combine the panels with a wide variety of ground protection systems
    • Optional range of underlays that protect the subsurface and adapt to ground conditions
    • CAD design to help optimize the planning process

    BEST PRACTICE

    HD Panels are made for extreme site conditions and are capable of load barring the heaviest of site traffic

    HD PANELS: DID YOU KNOW?

    Our HD Panels can easily handle heavy loads, such as cranes or trailers. Tight bolting creates safe roads and foundations all around. The multi-layer construction of the stable ground protection plates also ensures ideal load distribution. Moreover, these offer maximum load-bearing capacity. You can counteract soil compaction and damage to land with these plates. The highly profiled surface ensures excellent traction even on difficult ground.

    Ideal Solution for The Construction Industry

    However, you should know that the connecting screws protrude slightly. You can use this system exclusively in the construction industry. This is due to the unique surface structure and the type of connection.

    Installation Requirements

    We offer suitable alternatives for event areas where cases and dollies have to be pushed or heavily loaded pallet trucks pulled. You will need a crane truck or rear-loading crane for the installation.

    Advantages and Benefits arrow down
    • HD Panels present the heaviest duty of all aluminum roadways. Moreover, these offer reliable access for construction vehicles in adverse conditions
    • Cross-bonded for added traction
    • The weight distribution of load protects the subsurface
    • A rear-mounted crane installs the panels. Moreover, this guarantees safe access from the outset of installation
    • Box Panels for sites requiring heavy load distribution suitable for pedestrian footfall
    • 100 % recyclable materials
    Application Details arrow down

    You can use these panels for gravel roads, meadows, fields, or forest ground. Moreover, the slabs create load-bearing construction road systems. Similarly, these also offer construction platforms even on rough surfaces. You can also widen existing paths. In the event sector, there is little use for HD Panels. However, you can still use these to construct truck access roads.

    For Extreme Site Conditions

    The heavy-duty plates offer high stability. Moreover, these ensure optimum load distribution and traction. HD Panels are suitable for extreme site conditions. The robust ground protection mats facilitate access in the most challenging conditions. Similarly, these are capable of load barring the heaviest of site traffic.
