    BOX PANELS

    Loadable Box Panels for Foundations and Access Roads in the Event and Construction Industry

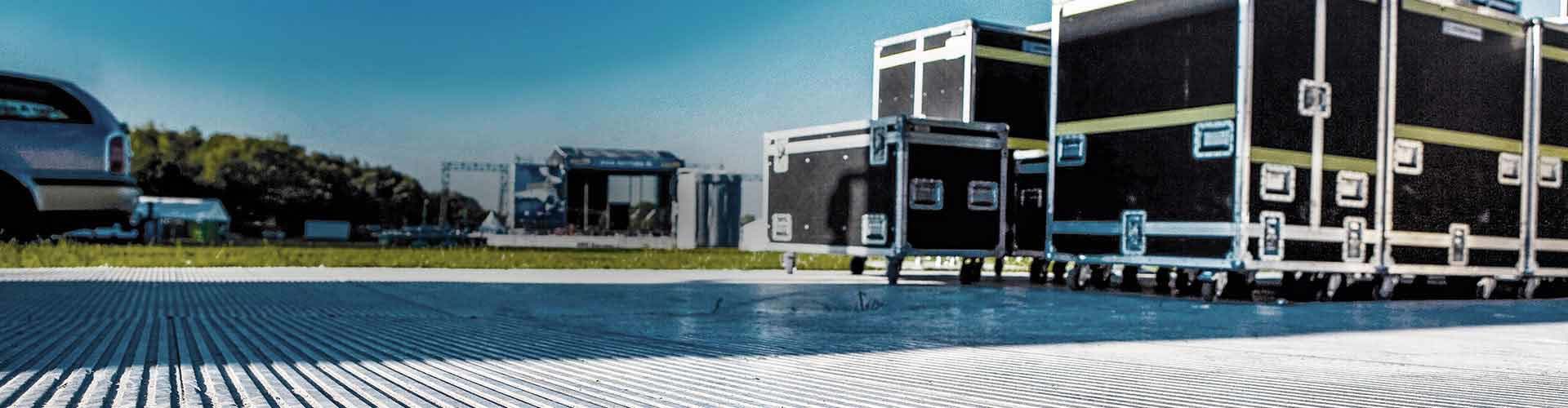

    Our Box Panels withstand the heaviest loads. Moreover, you can use these for event sectors and the construction industry. Similarly, they are suitable for flexible surfaces. These panels ensure the best load distribution. Moreover, these create a stable and safe surface for trucks and other heavy vehicles. If you underlay them with special rubber mats, you can also lay these ground protection mats on cobblestones or plastic floors, such as on tartan tracks in stadiums.

    HIGHLIGHTS

    • Pedestrian-friendly textured grip
    • The weight distribution of load protects the subsurface and reduces compression
    • Supports access for heavy vehicles up to a maximum weight of 12 t (26,455 lbs) per axle
    North & South America
    Australia
    Europe
    Ausgewählte Filter:
    You haven't found a match? Don't worry. Get in touch, and let us find the perfect alternative for you.
    Sensitive Ground Protection
    Stadium Turf and Running Tracks
    Stage Pads
    Temporary Access Roads
    Path Widening
    Festival Sites
    Greenfield Sites
    Parking Lots
    Construction Sites
    Compounds
    CURIOUS?

    Special ground issues, difficult terrain? No problem. Our team has got the right solution for all your needs.

    GET IN TOUCH

    PRODUCT FEATURES FOR BOX PANELS

    Our silver Box Panels are made from cast aluminum with a slightly profiled surface. This gives them high stability and makes them fireproof and non-slip. You can screw the individual heavy-duty plates together. One panel is 2.44 meters (8 feet) long and three meters wide (9 feet 10 inches). The height is 4.8 centimeters (2 inches).

    Product Description

    In addition to these ground protection mats, which weigh around 300 kilograms (660 pounds), we also offer a lighter version: The Neo Panel weighs about 250 kilograms (551 pounds). This variant is compatible with our Arena Panels and, in comparison to the Box Panel, comes with countersunk screws. In addition, the lower weight increases the loading capacity. As standard, we deliver these in stacks of ten units. Similarly, we also use an open truck for transportation. Moreover, we offer our panels for long-term rental.

    Completely Even Surface

    Box Panels connect seamlessly on all sides. Firmly screwed, the panels create a completely even surface. Moreover, the Panels provide a stable surface capable of supporting the heaviest of construction site traffic. If required, we can take care of the transport. Moreover, we can also take care of construction and breakdown. Similarly, one of our experienced supervisors can provide on-site support.

    Technical Data
    Material
    Strand-cast aluminum
    Dimensions (l x w x h)
    Standard: 2.44 × 3.00 × 0.048 m (8 ft × 9 ft 10 in × 2 in)
    Australia: 2.17 × 3.00 × 0.048 m (7 ft 3∕8 in × 9 ft 10 1∕8 in × 1 7∕8 in)
    Weight
    Approx. 300 kg (660 lbs) per panel
    Surface
    Slightly textured, pedestrian friendly
    Color
    Silver
    Accessories
    PE foil, geotextile, EnkaMat®, rubber mats
    Additional Information
    Load bearing capacity:
    139 t per m² (28,400 lbs per ft²)
    (depending on underground)
    Transport
    75 Panels per crane truck
    Approx. 549 m² (5909 ft²)
    Optional Extras

    We use PE film, geotextile made of non-woven, EnkaMat mats, or mats of rubber granulate. Moreover, we provide various underlays to protect the covered ground. We also offer accessories, such as screws, brackets with rounded ends, curved elements, and other additional components.

    Ramps for Smooth Transitions

    If required, we also offer plates in half the size. The range also includes suitable start and end ramps. Moreover, we also offer universal ramps on the transverse sides of the panels. In this way, you can create smooth transitions to the drivable event flooring. Therefore, you can enable gentle ascent and descent. In addition, you can combine a wide variety of turf protection systems with our Box Panels.

    EXTENSIONS AT A GLANCE

    • Ramp accessories to ensure safe and smooth transitions to the subsurface
    • ADA Ramps to facilitate wheelchair access
    • Flex Panels to create seamless curves in roadways
    • Optional range of underlays to protect subsurface, and that adapt to a variety of ground conditions
    • CAD design to help optimize planning processes

    BEST PRACTICE

    Box Panels facilitate safe access across either flat and uneven/undulating ground conditions

    BOX PANELS: DID YOU KNOW?

    The Box Panels are highly adaptable in the laying direction. Ideally, you should lay down access roads or areas in three-meter units (9 feet 10 inches), i.e., 3, 6, 9 meters, and so on. This is because the panels are screwed together on their 3-meter-long (9 feet 10 inches) side. Moreover, the individual rows connect laterally with brackets.

    Small Team for Construction and Breakdown

    A small team is sufficient for the construction and the breakdown. However, getting a crane truck or rear-loading crane for installation would be bestt a crane truck or rear-loading crane for the installation.

    Advantages and Benefits arrow down
    • Pedestrian-friendly textured grip
    • The weight distribution of load protects the subsurface and reduces compression
    • Enhances the load-bearing capacity of the subsurface
    • Supports access for heavy vehicles up to a maximum weight of 12 t (26,455 lbs) per axle
    • The panels are installed by a rear-mounted crane, guaranteeing safe access from the outset
    • 100 % recyclable materials
    Application Details arrow down

    You can also use Box Panels for stage pads, transport routes, truck access roads at events, the creation of construction site access roads, compound and storage areas, and path widening. The floor protection offers various application possibilities.

    Combination of Strength and Flexibility

    Box Panels are ideal for building temporary roads, access roads, and surfaces of all kinds. Moreover, these panels facilitate safe access across flat, uneven/undulating ground conditions. This happens due to the combination of strength and flexibility.

    DOWNLOAD FACTSHEET
