I-TRAC

Lightweight floor protection for extreme loads

With its unique shape, I-Trac stands out from other heavy-duty flooring options. You can easily connect its I-shaped floor panels to create stable surfaces and paths that can withstand extreme loads. Despite its high durability, I-Trac is surprisingly lightweight, making it a versatile choice for construction sites and various events. It’s commonly used to create mobile construction roads, access roads, and foundations for stadium shows. Plus, it’s suitable for almost any surface and protects sensitive green areas.

HIGHLIGHTS

A lightweight yet heavy-duty system that can be easily moved manually
Suitable for use both indoors and outdoors on a wide range of surfaces
Enables heavy vehicles weighing up to 40 tons (80.000 pounds) per axle to access the area

Product availability in your region

Find out about the availability of this product in your region:

Not available in your region? Contact us now and we will find an alternative for you.

Protection of Sensitive Soils

Green Areas

Stadium Lawns

Stage Foundations

Temporary Access Roads

Parking and Assembly Areas

Construction Sites

Festivals

Temporary Runways

PRODUCT FEATURES FOR I-TRAC

I-Trac is known for its excellent load distribution and optimal traction. As the name suggests, this floor protection solution is designed with an I-shape. Each panel measures 1.20 meters in length and 90 centimeters in width, with a height of 5 centimeters. The panels are made of polypropylene copolymer, which makes them strong and resistant to UV rays and solvents. You can use this lightweight yet durable system on various indoor and outdoor surfaces and support heavy vehicles weighing up to 40 tons per axle.

Product Description

I-Trac is incredibly lightweight, with each base plate weighing only 15.6 kilograms. This sets the heavy-duty system apart from comparable systems. Additionally, the floor protection, which can easily handle the highest point loads, features a lightly profiled surface that provides excellent non-slip properties.

High stability thanks to plug-in connections

During manual installation, the individual I-shaped elements interlock tightly. Plug-in connections ensure high stability. Moreover, the patented connection system enables a closed and level surface.

Expert on-site support

We can handle transport, assembly, disassembly, and final cleaning if requested. One of our experienced supervisors can also provide expert on-site support.

Technical Data

Material

PPCP+ (Polypropylene copolymer)

Dimensions (l x w x h)

1.20 m × 0.92 m × 0.054 m

Weight

Approx. 15.6 kg (38 lb) per panel

Surface

Slightly textured

Accessories

Ramps, Geotextile

Additional Information

Load bearing capacity: up to 40 t per axle
Approx. 1,000 t per sqm

Transport

18 panels per pallet
Approx. 155 sq ft / 670.21 lb
52 pallets per 13.6 m standard trailer
Approx. 8,060 sq ft / 34,850.67 lb

36 panels per stillage (2.35 m × 1.2 m × 1.2 m)
Approx. 28.8 m²

Optional Extras

We offer suitable ramps in white that ensure safe transitions between the floor covering and the covered substrate.

Geotextile as an additional protective carpet pad

We also have geotextile as an additional protective carpet pad to provide extra protection for the floor if needed. Depending on the application area, such as stadium shows, we recommend using I-Trac along with a supplementary turf protection system.

EXTENSIONS AT A GLANCE

Ramps for safe and smooth transitions to the covered substrate
Optional underlays for added subfloor protection and better ground adaptation
Cable protection bridges for the safety of cables, guests, and personnel
eps-produced CAD drawings for optimal planning processes

BEST PRACTICE

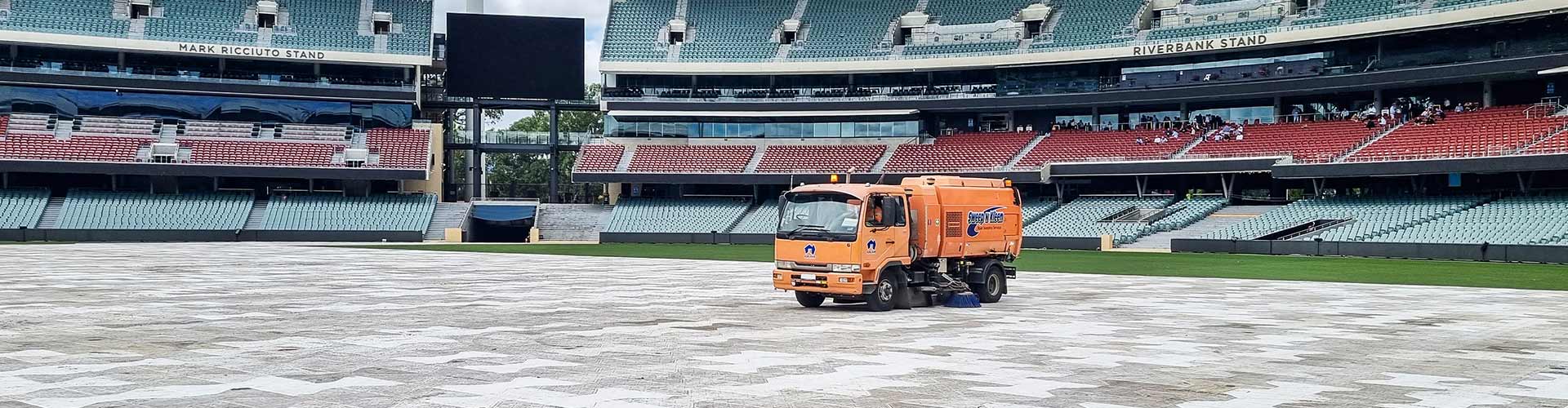

I-Trac is made for a wide variety of soils and tasks – whether as a heavy-duty road on a construction site or, as seen here, for load-bearing surfaces and paths in a stadium in Australia

I-TRAC: DID YOU KNOW?

Thanks to the unique plug-in system, the I-Trac provides a smooth and even surface that is safe for both vehicles and pedestrians, thanks to the high slip resistance of the floor slabs.

Weight is a Key Factor

The lightweight design of the I-Trac makes it easy to transport and install. The slabs can be easily laid by hand, making installation quick and effortless.

Advantages and Benefits

A lightweight yet heavy-duty system that can be easily moved manually
Provides high slip resistance for increased safety
Offers a lightly profiled, pedestrian-friendly surface for comfortable walking
Suitable for use both indoors and outdoors on a wide range of surfaces
Enables heavy vehicles weighing up to 40 tons (80.000 pounds) per axle to access the area
Protects the subsoil and counteracts soil compaction through load distribution
Resistant to theft as a plastic floor protection

Application Details

I-Trac provides versatile ground protection solutions in various scenarios, such as mobile construction roads, parking, and assembly areas on construction sites. The floor panels serve as a solid substructure for large stages, providing closed surfaces suitable for pedestrian traffic and creating access routes for cranes, trucks, and other equipment at events. You can use it to create an airfield quickly, making this event floor ideal for short-term relief organization operations.

Suitable for various soil types

The lightweight yet heavy-duty ground protection system is suitable for almost any ground, including loamy, sandy, or snow-covered soils, gravel or crushed stone subsoils, and soft, yielding soils. Heavy vehicles can navigate safely on soft soils without causing soil compaction, offering the best protection for sensitive lawns. Additionally, I-Trac is less susceptible to theft as it is a plastic floor protection system.
