    PistEco

    The economic system for temporary access roads and working platforms

    WHAT IS PISTECO?

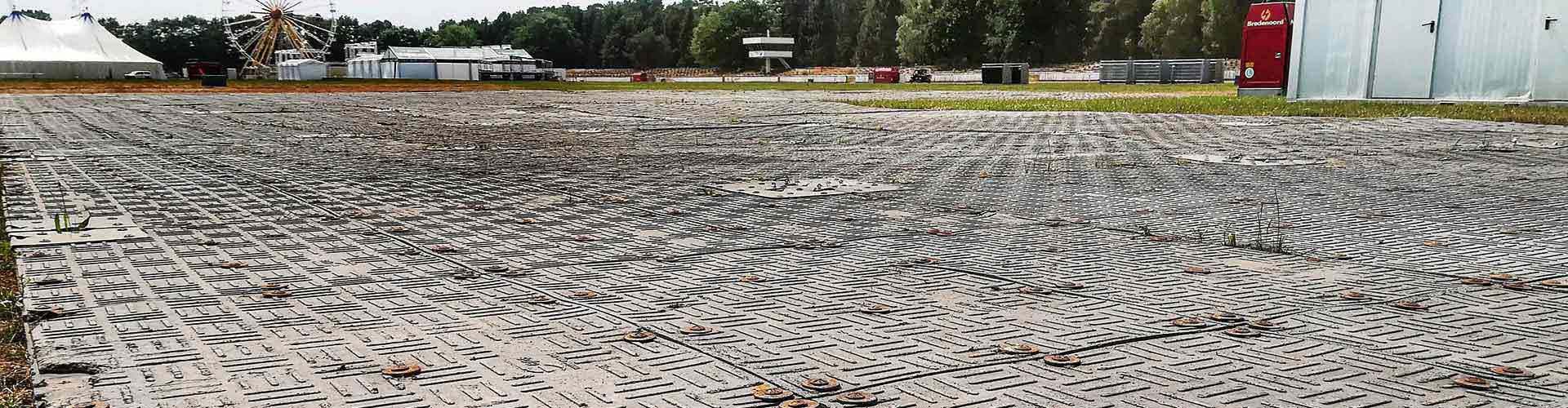

    The interconnected PistEco plastic panels create temporary access roads, parking lots, or working platforms. The plates are firmly secured together. Moreover, these allow a degree of lateral movement to avoid buckling. These plates can accommodate irregular ground conditions.

    Adapts optimally to irregular grounds

    PistEco transforms soft ground surfaces, such as meadows and fields, into heavy-duty roads, access roads, and construction platforms. You can drive over these surfaces with heavy trucks or construction machinery at short notice. The flexible, temporary ground protection plates adapt optimally to irregular grounds. Moreover, these plates ensure very good traction and load distribution.

    Can withstand heavy loads

    These plates are ideal for constructing temporary transport routes, car or truck access roads, work or storage areas. The robust temporary roadway system can withstand heavy loads. It is also ideal for construction sites and events of all kinds. You can easily widen existing paths with the slabs. Ground protection is also used for the construction of temporary parking spaces.

    GET IN TOUCH
    Technical Data
    Material
    Polystone® and PVC sheets
    Dimensions (l x w x h)
    2.40 x 3.60 x 0.035 m (7 ft 10 in x 11 ft 10 in x 1 in)
    Weight
    approx. 350 kg (715 lbs) per sheet
    Color
    anthracite grey
    Additional Information
    load bearing capacity: up to 80 t depending on underground
    Transport
    70 sheets per standard trailer
    Approx. 168 m / 604 m² (550 ft / 6,501 ft²)

    PRODUCT FEATURES FOR PISTECO

    PistEco plates are a durable and eco-friendly ground cover option. We make these from recyclable and recycled materials. The combination of Polystone plates and tightly screwed PVC anti-slip sheets provide the essential weight distribution. This combination also offers enough traction to transport construction vehicles quickly and safely.

    Robust but extremely adaptable

    To produce the black-grey ground protection, we firmly bolted mats, PVC panels, and polystyrene. The panels weigh about 350 kilograms (772 lbs) and are 2.4 meters (7 ft 10 in) long, 3.6 meters (11 ft 10 in) wide, and 3.5 centimeters (1 in) high.

    On the one hand, the material gives them their robust nature. On the other hand, these offer special flexibility. They can bend in all directions and are extremely adaptable. The slightly profiled surface provides slip resistance.

    Transport, construction, and breakdown

    Also, the panels have metal corners with shackle holders to connect the panels. Ground Protection for heavy equipment is also available for long-term rental. On request, we can also take care of the construction and the breakdown in addition to transport. One of our experienced construction supervisors can take care of the installation on site.

    CURIOUS?

    Special ground issues, difficult terrain? No problem. Our team has got the right solution for all your needs.

    GET IN TOUCH

    PISTECO: DID YOU KNOW?

    A great advantage of this drivable event flooring is its special flexibility. Although the shackles provide a stable connection between the individual panels, the connections have some play. These connections are less fixed than with some other heavy-duty ground protection systems.

    Adaptable in all directions

    The flexible material is adaptable in all directions. This is where PistEco stands out from comparable solutions. The temporary ground protection adapts optimally to the surface. This protection is ideal for irregularities with ease.

    You can implement slight bends with ease. The installation requires a crane truck or a wheel loader with a pallet fork. The shackles in this system stand out. We offer suitable alternatives for applications that require a ground protection system suitable for pedestrians.

    What are the Advantages of PistEco?

    • The weight distribution of load protects the sub-surface.
    • Supports access for heavy vehicles up to 12 ton (26455 lbs) per axle
    • PistEco Panels are installed by a rear-mounted crane, guaranteeing safe access from the outset of installation.
    • Eco-friendly, made from recycled and recyclable material.

    BEST PRACTICE

    PistEco is flexible and adaptable in all directions – a ground protection system for extreme surfaces

    OPTIONAL EXTRAS FOR PISTECO

    We provide the necessary accessories for the installation. In addition to the shackles, we also have various supports available for additional protection. The floor space determines whether you should lay out PE foil, non-woven geotextile, Enkamat mats, or rubber granulate mats before the panels.

    Combine with a variety of systems

    You can also combine the ground protection for heavy equipment with a wide variety of turf protection systems. For example, PistEco is a strong solution for soft surfaces, such as an open-air concert in a football stadium.

    What Are the Extensions for PistEco?

    • For sites with multiple access requirements, PistEco can be combined with a wide variety of ground protection systems
    • HD Panels for robust, high traction access with high load-bearing and weight distribution capabilities
    • Box Panels for pedestrian-friendly, flexible access with high load-bearing and weight distribution capabilities
    • eps offers CAD design to help optimize the planning process

    APPLICATIONS FOR PISTECO

    • Construction sites
    • Temporary access roads
    • Production routes
    • Compound areas
    • Car Parks
    • Film Locations
    • Adverse cambers
    • Sites with poor sub-surface
