PRODUCT FEATURES FOR GIGS MULTICORE GATE
We designed and built this system at eps’ Italian manufacturing division near Udine. The GIGS Multicore Barricade Modules fully comply with the CE Mark standard and undergo regular quality checks. We offer different variants, including the GIGS Multicore (Cable Access), GIGS Multicore Access Gate (MAG), and GIGS Mega Multicore Access Gate (MEGA MAG), which features a door. Our range also includes versions without bottom panels for increased flexibility.
We design and build all elements from aluminum, making them robust, weatherproof, and easy to transport. They are available in black or silver, and all variants have a height of 1.18 meters (46 inches) and a depth of 1.25 meters (49 inches). The width varies between 1.09 and 2.18 meters (43 to 86 inches), depending on the version. The GIGS Cable Access cable outlet is 0.80 meters (31 inches) wide and 0.15 meters (6 inches) high. The total weight is about 43.50 kilograms (96 pounds).
XXL Module with Extra-Wide Passage
The cable passage of the GIGS Multicore Access Gate is 0.80 meters (31 inches) wide and 0.17 meters (7 inches) high. The total weight is approximately 44 kilograms (97 pounds). The GIGS Mega Multicore Access Gate offers an extra-wide passage. The cable passage in the XXL module is 1.80 meters (71 inches) wide and 0.17 meters (7 inches) high. The total weight is around 78 kilograms (172 pounds). Furthermore, you can combine all GIGS Multicore Barricade Modules with our other GIGS elements.
1.09 × 1.25 × 1.18 m (43 × 49 × 46 in)
Opening cable outlet: 0.80 × 0.15 m (31 × 6 in)
GIGS Multicore Access Gate (MAG)
1.09 × 1.25 × 1.18 m (43 × 49 × 46 in)
Opening cable outlet: 0.80 × 0.17 m (31 × 7 in)
GIGS Mega Multicore Access Gate (MEGA MAG)
2.18 × 1.25 × 1.18 m (86 × 49 × 46 in)
Opening cable outlet: 1.80 × 0.17 m (71 × 7 in)
GIGS Multicore Access Gate (MAG): approx. 44 kg (97 lbs)
GIGS Mega Multicore Access Gate (MEGA MAG): approx. 78 kg (172 lbs)

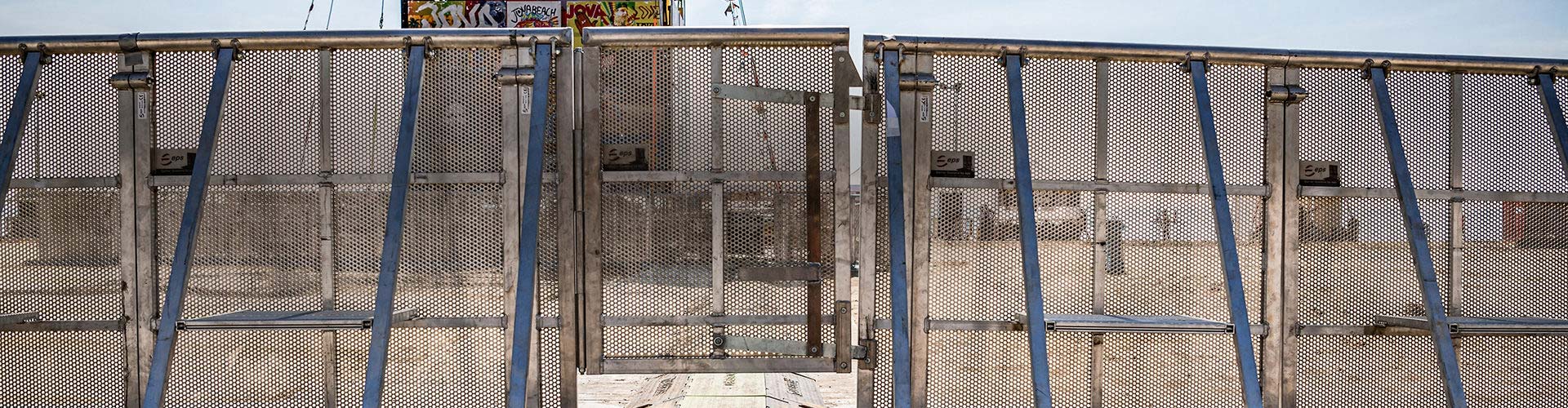

GIGS Multicore Access Gates (MAG) are load-bearing barricade pieces with an integrated cable passage and door. They allow staff access, while cables can easily pass through the barricade lines.
GIGS Mega MAG is the XXL version of the MAG. It allows wide wiring looms to pass through the barricade lines, and a door gives access to sound engineers and security personnel to reach delay towers or FOH's. Back steps can be added to this element.
GIGS Multicore Access Gate (MAG): 10 per dolly
GIGS Mega Multicore Access Gate (MEGA MAG): 5 per pallet
- Combines with all other components in the GIGS range
- Cable Protectors to safeguard equipment and audiences on the event floor
- CAD design to help optimize the planning process
