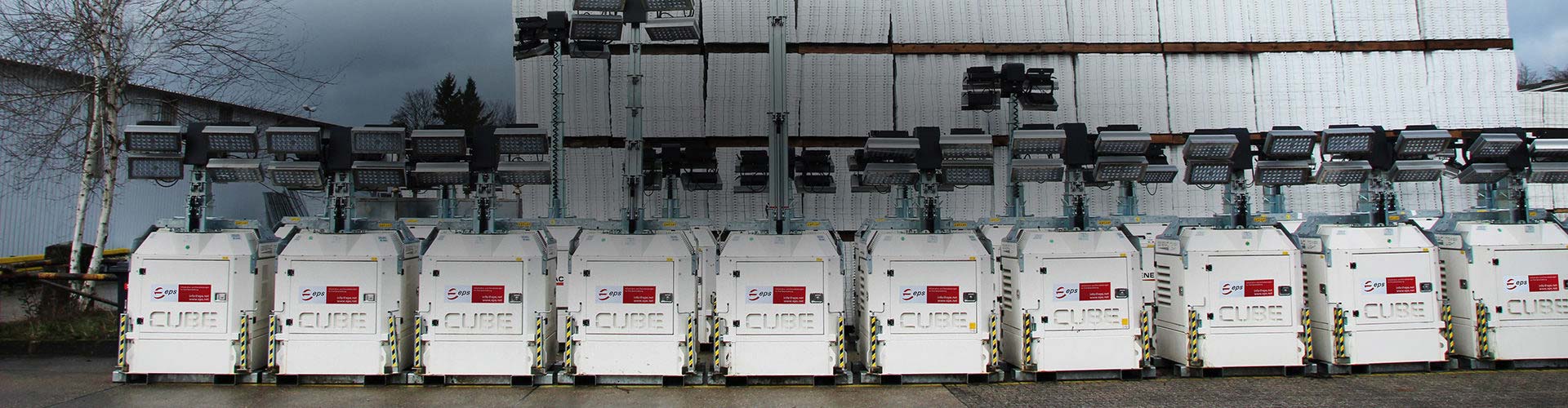

    HYDRO POWER CUBE

    Efficient mobile lighting solution for construction and event sites

    The Hydro Power Cube provides an efficient portable lighting solution for construction and event sites. With four spotlights, this mobile floodlight mast ensures everyone is in the safe spotlight. The powerful spotlights effectively illuminate extensive event areas, making them ideal for open-air concerts, festivals, and outdoor events. Additionally, it can illuminate various locations such as work areas, facilities, and supply roads, providing bright and reliable illumination wherever needed.

    HIGHLIGHTS

    • The light output of 146,000 lumens
    • The telescopic pole is reaching a maximum height of 9 m (29.53 ft) with a 360° rotation
    • Wind stability up to 80 km/h (49.7 m/h)

    Product availability in your region

    Find out about the availability of this product in your region:

    • USA

    Not available in your region? Contact us now and we will find an alternative for you.

    Entrance Routes and Walkways
    Festivals
    Greenfield Sites
    Outdoor Events
    Corporate Events
    Work Areas
    Construction Sites
    CURIOUS?

    Need temporary lighting? No problem. Our team has the right solution for you.

    GET IN TOUCH

    PRODUCT FEATURES FOR HYDRO POWER CUBES

    The predominantly white metal lighting system weighs approximately 1,161 kilograms (2,560 pounds). When filled with a full tank of diesel, which comprises 200 liters (52.8 US liquid gallons), the system weighs about 166 kilograms (366 pounds). Despite its compact size, the unit measures 1.33 meters (52 inches) in length, 1.23 meters (48 inches) in width, and 2.33 meters (92 inches) in height. When the supports are fully extended, they measure 2.54 meters (100 inches) in length and width, providing stability and durability to the system.

    Product Description

    The individually adjustable telescopic mast of the Hydro Power Cube is designed to withstand winds of up to 80 kilometers per hour (47.7 miles per hour). Using a hydraulic lifting system, it can be extended to approximately 9 meters (29.53 feet), allowing for versatile lighting options. The lighting system is easy to operate and comes with four LED spotlights, each with an output of 300 watts, providing a total luminous flux of 146,000 lumens.

    360 degrees rotatable for optimal alignment

    The Hydro Power Cube can illuminate an area of around 3,900 square meters (41,979 square feet). The mast can be rotated 360 degrees, allowing optimum alignment and coverage of the desired area. For added convenience, we can provide professional assembly, disassembly, and transport services upon request.

    Technical Data
    Dimensions (l x w x h)
    Telescopic pole reaching a maximum height of 9.00 m (354 in)
    Minimum: 1.33 × 1.23 × 2.33 m (52 × 48 × 92 in)
    Maximum: 2.54 × 2.54 × 9.00 m (100 × 100 × 354 in)
    Weight
    1,161 kg (2,560 lbs)
    Accessories
    Pegs for grounding, fork sleeves for forklift truck
    Additional Information
    Light quantity: 146,000 lumen
    Light action radius: approx. 3,900 m² (approx. 41,979 ft²)
    Rotation: 360°
    Wind stability: max. 80 km/h
    Transport
    22 per standard truck,
    Unloading by forklift truck
    Optional Extras

    Our offer also includes various accessories necessary for transporting and installing the Hydro Power Cube. For example, we have solid ground nails ready to anchor the mobile plant firmly in the ground.

    High level of safety

    A high level of safety is a top priority in every respect. Moreover, these are necessary to brightly illuminate sanitary facilities on a festival site or other event areas.

    EXTENSIONS AT A GLANCE

    • eps offers a range of pedestrian and drivable flooring to service all site access requirements.
    • Cable Protectors are available to safeguard equipment and audiences across event sites.
    • Crowd Control Barriers
    • Temporary Fencing
    • eps offers CAD design to help optimize the planning process.

    BEST PRACTICE

    The Hydro Power Cube is well suited for outdoor events, where it can be used to illuminate a wide variety of locations

    Hydro Power Cubes: DID YOU KNOW?

    The Hydro Power Cube is designed for easy handling, thanks to its compact shape that facilitates transport and makes it easy to set up, commission, and control. The mast height can be manually adjusted for convenience.

    24 hours of continuous operation – 10 days with one tank filling

    Built to be highly robust, the Hydro Power Cube offers a long service life. One tank filling can run for up to ten days of continuous operation. Additionally, an integrated power generator serves as an energy source.

    Option for external power sources

    Alternatively, the floodlight mast can also be operated with an external power source, resulting in quieter operation than the generator’s volume. Another advantage is that the Hydro Power Cube can be transported fully fueled, although on-site refueling may be necessary to ensure continuous operation.

    Advantages and Benefits arrow down
    • The light output of 146,000 lumens
    • Telescopic pole reaching a maximum height of 9m with 360° rotation
    • Approx. 3,900 m² (41,979 ft²) light-radius
    • Wind stability up to 80 km/h (49.7 m/h)
    Application Details arrow down

    The Hydro Power Cube is a powerful and transportable floodlight system designed to illuminate escape routes and sanitary areas and provide favorable working light during setup or dismantling phases, creating a safe environment for guests and crew members.

    You can quickly use it almost anywhere

    The mobile lighting system Hydro Power Cube can be quickly deployed almost anywhere, making it ideal for short-term events or use on sites for other purposes. Its rapid setup and dismantling capabilities make it a convenient lighting solution when time is of the essence.

    DOWNLOAD FACTSHEET
