GIGS CORNER

Load-bearing fixed angle elements

You can build different angles in barricade lines with our GIGS Corner. It is suitable for securing delay towers and the FOH. Similarly, it is ideal for creating secondary barricade lines and special stage constructions with high spectator pressure. The audience stands inside (inside corner) or outside (outside corner) of the respective angle.

HIGHLIGHTS

  • Load-bearing angle elements of 90°, 45°, 22.5°, and 5°
  • Combine multiple elements with GIGS Straights to produce the necessary configuration, including 360° rounds
  • 100 % recyclable materials
North & South America
Australia
Europe
The Product you are looking for is not available? Don't worry, check all eps products worldwide and get in touch. Let us find the perfect alternative for you.
Stadium and Arena Shows Stadium and Arena Shows
Festivals Festivals
Walkways Walkways
Catwalks Catwalks
Sporting Events Sporting Events
Heavy-Duty Crowd Control Solutions Heavy-Duty Crowd Control Solutions
CURIOUS?

Special stage barricade issues? No problem. Our team has got the right solution for all your needs.

PRODUCT FEATURES FOR GIGS CORNER

We designed and built this system at eps’ Italian manufacturing division. The GIGS Corner is constructed to CE Standard. It is available in many models for both internal and external curves in barrier lines; 90°, 45°, 22.5°, and 5°. We made every angle variant from aluminum. Moreover, it offers weather resistance, stability, and fire resistance. Similarly, flattened floor slabs serve as tread surfaces. Therefore, these prevent tripping hazards. All corner elements are available in black and silver.

Product Description arrow down

Apart from the uniform height of around 1.18 meters (46 inches), there are differences in the dimensions. These vary depending on the respective angle. The 90° variant has a length of 1.77 meters (70 inches) and a width of 0.88 meters (35 inches) as an inside corner. As an outside corner, it has a length of 1.77 meters (70 inches) and a width of 0.96 meters (38 inches).

Precisely Fitting Variants: 5°, 22,5°, 45°, and 90°

The 45° corner element is 0.96 meters (38 inches) long and 1.18 meters (46 inches) wide as an inside corner. It is 1.10 meters (43 inches) long and 1.18 meters (46 inches) wide as an outside variant. The 22.5° angle element is 0.52 meters (21 inches) long and 1.24 meters (49 inches) wide as an inside corner. Moreover, it is 0.66 meters (26 inches) long and 1.24 meters (49 inches) wide as an outside corner. The length of the inside corner from the 5° variant is 0.27 meters (11 inches). The width is 1.25 meters (49 inches). And as an outside corner, it is 0.29 meters (12 inches) long and 1.25 meters (49 inches) wide.

Combine With Any Module of The GIGS Series

You can combine all versions of our GIGS Corner with any module from the GIGS range. Our GIGS Vario angle element for variable angles offers the perfect alternative.

Technical Data arrow down
Technical Data
Material
Aluminum
Dimensions (l x w x h)
Corner 5°:
Inside: 0.27 × 1.25 × 1.18 m (10.5 × 49 × 46 in)
Outside: 0.29 × 1.25 × 1.18 m (11.5 × 49 × 46 in)

Corner 22,5°:
Inside: 0.52 × 1.24 × 1.18 m (20.5 × 49 × 46 in)
Outside: 0.66 × 1.24 × 1.18 m (26 × 49 × 46 in)

Corner 45°:
Inside: 0.96 × 1.18 × 1.18 m (38 × 46 × 46 in)
Outside: 1.10 × 1.18 × 1.18 m (43 × 46 × 46 in)

Corner 90°:
Inside: 1.77 × 0.88 × 1.18 m (69.5 × 35 × 46 in)
Outside: 1.77 × 0.96 × 1.18 m (69.5 × 37.5 × 46 in)
Weight
Corner 5°: approx. 10,7 kg (23.6 lbs) / 11,8 kg (26.0 lbs)
Corner 22,5°: approx. 11,8 kg (26.0 lbs) / 17,5 kg (38.6 lbs)
Corner 45°: approx. 16.8 kg (37 lbs) / 23.5 kg (51.8 lbs)
Corner 90°: approx. 26.9 kg (59.3 lbs) / 32 kg (70.5 lbs)
Color
Silver or black
Transport
Corner 5°: 40 per dolly
Corner 22,5°: 20 per dolly
Corner 45°: 10 per dolly
Corner 90°: 3 per dolly
Optional Extras arrow down

BEST PRACTICE

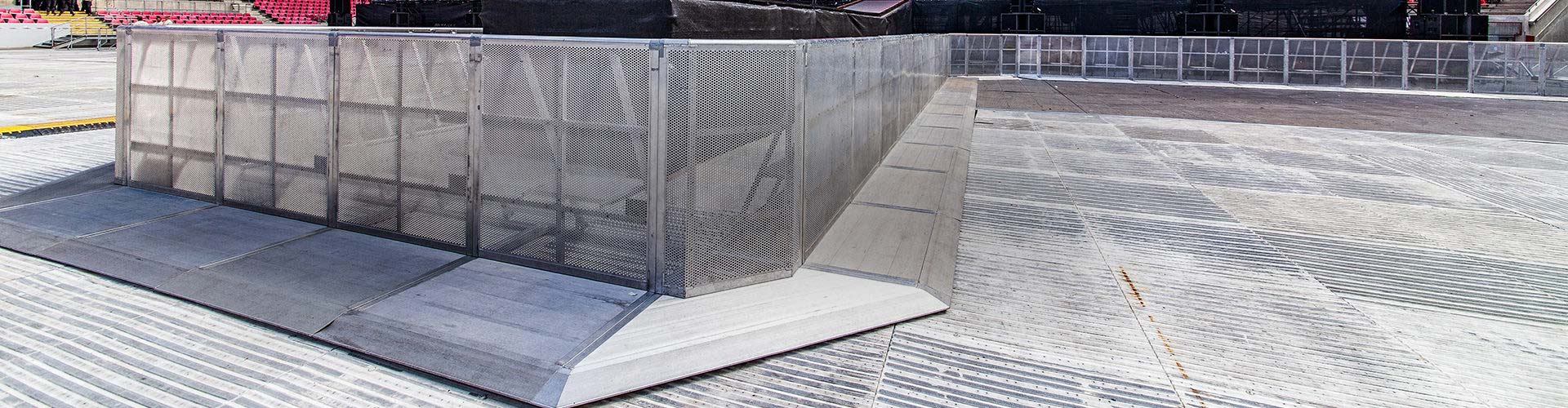

With the GIGS Corner, barricade lines can be flexibly designed, as here at “Parookaville” or at the Depeche Mode concert in the RheinEnergieSTADION in Cologne, Germany

GIGS CORNER: DID YOU KNOW?

Multiple load-bearing angles can help enhance the safety level at events. Our GIGS Corner can help you do that, as you can create different angles. Moreover, you can ideally adapt these to local conditions and other requirements. Therefore, you can manage the flow as necessary.

Advantages and Benefits arrow down
  • Load-bearing angle elements of 90°, 45°, 22.5°, and 5°
  • Combine multiple elements with GIGS Straights to produce the necessary configuration, including 360° rounds
  • 100 % recyclable materials
Application Details arrow down

The different angle variants meet the various requirements of music, sports, and other major events. For example, these are ideal when securing FOHs, delay towers, or unique stage designs.

For Spatially Limited Event Areas

Moreover, the corner elements also allow flatter angles of 5°, 22.5°, and 45° – precise and space-saving. Therefore, we recommend using the GIGS Corner on spatially limited event areas or fixed locations with expected high visitor numbers.
