LD ROLLS

A Lightweight Roadway System for Short Term Use

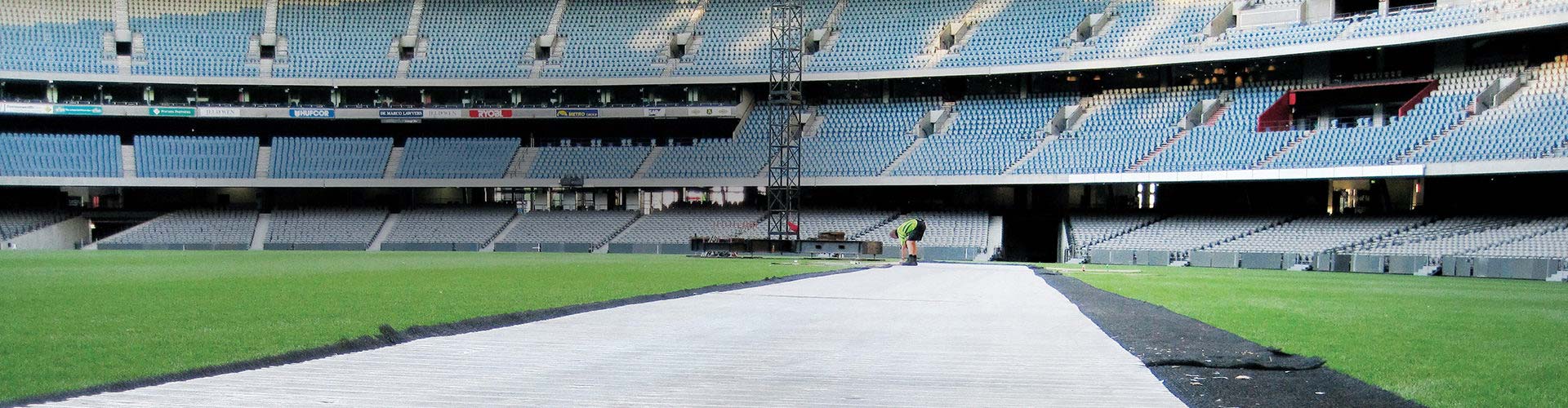

LD Rolls are an excellent solution for providing flexibility in creating short-term access routes for lighter to medium-heavy loads. The rolled trackway allows for the fast creation of lightweight roads or access points, giving sites continuous flexibility and quickly preparing them for action. The rolls prove to be an effective solution for creating short-term transport routes for lighter to medium-heavy loads. With the rolled-up tracks, it is easy to create lightweight roads or access points required for an event.

HIGHLIGHTS

  • Provides a rapid deploy 20m x 3m (65 ft 7 in x 9 ft 10 in) access route
  • Speed of operation for repeated use across sites
  • Supports adverse-weather contingency planning

Product availability in your region

Find out about the availability of this product in your region:

  • USA

Not available in your region? Contact us now and we will find an alternative for you.

Temporary Access Roads
Path Widening
Festival Sites
Sensitive Ground Protection
Greenfield Sites
Parking Lots
Heavy Goods Vehicle Parking
Construction Routes
Compounds
CURIOUS?

Special ground issues, difficult terrain? No problem. Our team has got the right solution for all your needs.

PRODUCT FEATURES FOR LD ROLLS

You can deploy, collect, and redeploy the LD Rolls within minutes, allowing for repeated use across events or construction sites. Their ultra-thin design minimizes trip hazards, and the slightly treaded surface prevents slipping, making the rolls safe for wheelchair, bicycle, and forklift access.

Product Description

LD Rolls are made of extruded aluminum, providing stable and robust properties to the ground protection system. The silver-colored panels are approximately 20 meters long (65 feet 7 inches), 3 meters wide (9 feet 10 inches), and weigh 1,215 kilograms.

Profiled with Non-Slip Surface

We supply these panels in rolls, which are relatively flat with a height of 2 centimeters (1 inch), and have a slightly profiled and non-slip surface. The quick-to-install system is also available for long-term rental, and we can provide transport, construction, and breakdown services upon request. Additionally, our expert installation supervisors can provide on-site support.

Technical Data
Material
Strand-cast aluminum
Dimensions (l x w x h)
20.00 × 3.00 × 0.02 m (65 ft 7 in × 9 ft 10 in × 1 in)
Weight
Approx. 1,215 kg per 20 m roll
(2,678 lbs per 65 ft roll)
Surface
Lightly textured, pedestrian friendly
Accessories
PE foil, geotextile, rubber mats
Transport
240 m (787 ft 4,82 in)
(12 rolls) per standard trailer
Approx. 720 m² (7,750 ft²)
Optional Extras

Depending on the load and condition of the surface to be covered, it may be advantageous to combine the ground protection system with a suitable base for maximum protection of the covered substrate. We offer PE foil made of non-woven fabric and special rubber mats.

Underlay with Rubber Mats

You can also use the LD Rolls on synthetic floors such as tartan tracks or cobblestones by underlying the tiles with appropriate rubber mats. With our LD Rolls, you can easily create temporary paths and access roads for the construction and event industry in just a few steps and within a short period.

EXTENSIONS AT A GLANCE

  • Optional range of underlays to protect the subsurface and adapt to ground conditions
  • CAD design to help optimize the planning process

BEST PRACTICE

LD rolls are an excellent solution when it comes to providing the flexibility of short-term access routes for lighter to medium-heavy loads

LD ROLLS: DID YOU KNOW?

It is easy to roll out the LD Rolls in long and large sheets by hand in no time at all, making sure to ensure their exact positioning, as aligning sheets that have already been spread out can be challenging. The process of laying more expansive surfaces, where several sheets need to be precisely positioned next to each other on their long sides, can be time-consuming.

Quick Construction and Breakdown

However, the construction of access roads and transport routes for temporary use can be carried out extremely quickly with this system, and the roads can be easily removed as well. The ground cover also impresses with its non-slip properties.

Optimum Grip

The slightly profiled surface ensures optimum grip. Thanks to its aluminum construction, this drivable event flooring is also particularly stable and load-bearing compared to other systems designed for comparable loads.

Advantages and Benefits arrow down
  • Pedestrian-friendly low profile and texture grip
  • Provides a rapid deploy 20m x 3m access route
  • Speed of operation for repeated use across sites
  • The ease of installation makes LD Rolls suitable for dry hire
  • Supports adverse-weather contingency planning
  • 100 % recyclable materials
Application Details arrow down

LD Rolls are ideal for access points to construction sites, parking lot entrances, golf tournaments, transportation routes for rock concert events in stadiums, and other events, due to their load-distributing properties.

Suitable for Cobblestone Pavements and Tartan Tracks

When underlaid with special rubber mats, the drivable event flooring is also suitable for cobblestone pavements or tartan tracks. Pedestrians, wheelchair users, cyclists, cars, and medium-sized forklifts can walk or drive on the roads laid with LD Rolls without any problems.
