MATRAX PANELS

Durable, Lightweight Plates Capable of Supporting Heavy Loads

Matrax Panels are a lightweight plastic ground protection system that consists of interlocking panels. This system can support heavy loads, including equipment and large crowds. It forms a stable base for large outdoor stages and grandstands and provides safe access for forklifts, site traffic, and heavy goods vehicles. Matrax Panels offer a comprehensive solution that combines various features relevant to flooring, including optimized load distribution for creating even surfaces. Additionally, its translucent quality protects sensitive turfs.

HIGHLIGHTS

  • Pedestrian-friendly textured grip and surface flush cam-lock connections create a seamless working surface
  • The material is 100 % recycled and is proudly manufactured in the USA
  • The internal geometry combined with the product’s physical properties results in a mat with a load rating of 3.63 t per m² (80,000 lbs per sq ft).

Product availability in your region

Find out about the availability of this product in your region:

  • USA

Not available in your region? Contact us now and we will find an alternative for you.

Temporary Tent and Event Flooring
Parking Lots
Warehouse Flooring
Storage Tents
Aircraft Hangars
Hardscape Protection
Temporary Work Platforms
Areas in Industrial Applications
ADA Compliant Walkways
CURIOUS?

Special ground issues, difficult terrain? No problem. Our team has got the right solution for all your needs.

PRODUCT FEATURES FOR MATRAX PANELS

The Matrax ground protection system features translucent panels that allow natural grass to grow for 14+ days. The individual panels have non-skid surfaces and solid undersides, providing seamless contact with surfaces beneath.

Product Description

These lightweight panels enable quick handling, deployment, and transport. Matrax Panels use 100% recycled HDPE materials and are entirely manufactured within the USA.

In grey or translucent white

The ground protection mats are available in grey or translucent white, measuring 3.80 centimeters (1.50 inches) in height and weighing only about 21.50 kilograms (47.50 pounds) each. They measure 1.22 by 1.22 meters (48 x 48 inches) – 10 centimeters (4 inches) less on each side in cover dimensions and are made of high-density polyethylene (HDPE).

Stable, durable, and reusable

The thermoplastic material is stable, durable, and 100% reusable. The slightly textured surface ensures optimal grip. The panels, connected in pairs, are delivered on pallets, each equipped with 25 pairs of mats. We are happy to take care of transport, construction, breakdown, and final cleaning if required.

Technical Data
Material
Polyethylene (HDPE)
Dimensions (l x w x h)
1.12 × 1.12 × 0.038 m (44 × 44 × 1.5 in)
Weight
Approx. 21.50 kg (47.5 lbs) per panel
Surface
Slightly textured
Color
Transparent and Grey
Accessories
Ramps for smooth vehicle access, PE foil, geotextile
Transport
16 pallets à 50 panels per standard trailer
Approx. 992 m² (10,677.80 ft²)
Optional Extras

The corresponding tool required for laying the ground protection or fixing the connections is included in the scope of delivery.

Gentle access and exit for wheelchair users

Additionally, you can extend the ground protection system with flat ramps that comply with the US ADA standards for accessibility under building law, providing gentle access and exit for wheelchair users. Matrax Panels are a versatile ground protection system that covers sensitive surfaces and caters to various needs.

EXTENSIONS AT A GLANCE

  • ADA Ramps to ensure smooth transitions to subsurface and facilitate wheelchair access
  • Optional range of underlays to protect the subsurface and adapt to ground conditions
  • Transition products to seamlessly connect Matrax Panels with other ground and turf protection systems
  • Compatible with eps’ range of drivable and pedestrian flooring
  • Cable Protectors are available to safeguard equipment and audiences on the event floor

BEST PRACTICE

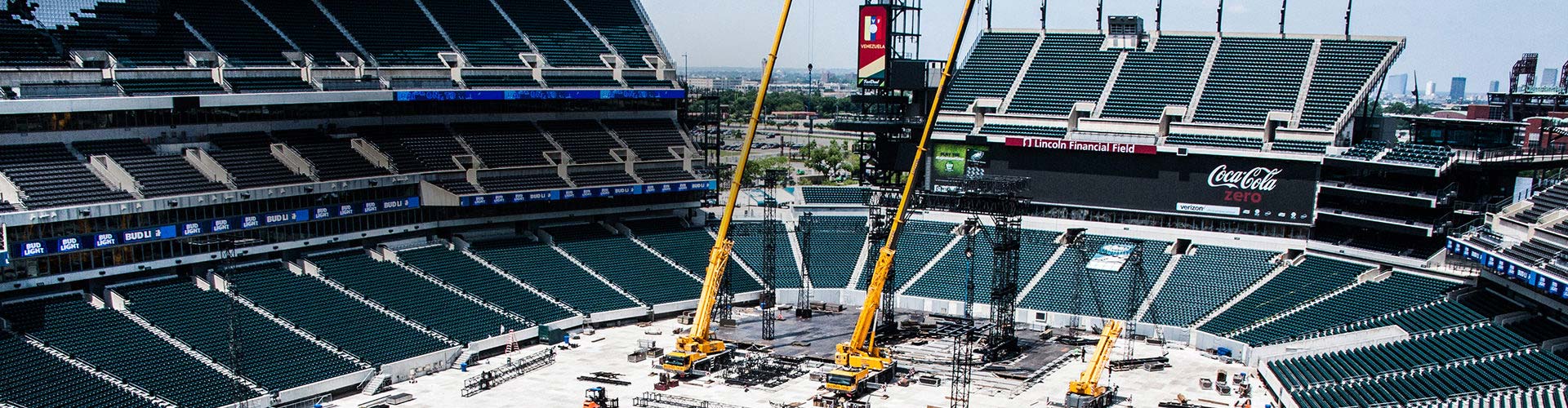

Matrax Panels are a lightweight plastic and pedestrian-friendly ground protection system, often used in stadiums – here at a Coldplay concert

MATRAX PANELS: DID YOU KNOW?

Matrax Panels offer several advantages. The extremely low weight facilitates and accelerates transport, construction, and breakdown phases, making it easy to handle. The system features a simple and intelligent design with an integrated vertical locking system, eliminating the need for loose parts. This makes it a lightweight solution you can easily install and dismantle with panels that are simple to connect and disassemble

Translucent: Longer Lying Time

As a hybrid system, Matrax is a versatile all-rounder, providing balanced load distribution, flush surfaces, and protection for sensitive lawns, particularly natural grass. Thanks to their translucent properties, the panels facilitate photosynthesis, allowing natural turf to be covered longer with Matrax Panels compared to other drivable event floorings.

Advantages and Benefits arrow down
  • Pedestrian-friendly textured grip and surface flush cam-lock connections create a seamless working surface
  • The weight distribution of load protects the sub-surface and reduces compression
  • The material is 100 % recycled and is proudly manufactured in the USA
  • The internal geometry combined with the product’s physical properties results in a mat that attains a load rating of 3.63 t per m² (80,000 lbs per sq ft)
  • Optimal performance on flat, stable ground
Application Details arrow down

Whether it’s a festival on the grass track of a racetrack or a concert on the green area of a stadium, the Matrax drivable event flooring provides solid stage foundations, work surfaces, access roads, and lawn protection for temporary use.

For Natural and Artificial Lawns

Matrax Panels are suitable for maintaining natural and artificial lawns, creating smooth, safe, and stable surfaces for all event participants, including smaller construction vehicles.
